Plant Facility
- MANUFACTURING PROCESS DESIGN & DRAFTING
- CNC NESTING & PROGRAM
- LASER CUTTING
- TURRET PUNCHING
- CNC PRESS BRAKE M/C
- WELDING
- POWDER COATING
- ASSEMBLY
LASER CUTTING

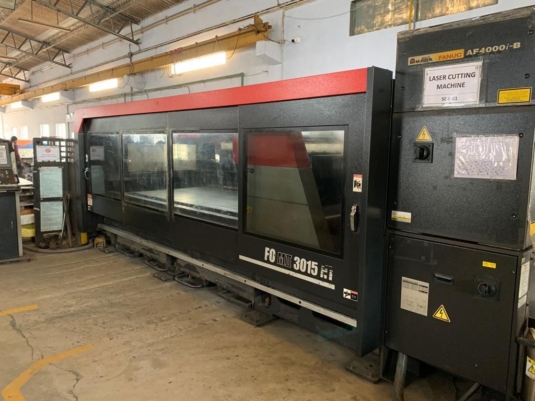

LASER CUTTING M/C (3.0 KW)
Bed Size:- 1.5 x 3.0 mtr.
Cutting Capacity : Max.16 mm MS , 8 mm SS & 6 mm AL
LASER CUTTING M/C (2.5 KW)
Bed Size:- 1.5 x 3.0 mtr.
Cutting Capacity : Max.16 mm MS , 8 mm SS & 6 mm AL
TURRET PUNCHING

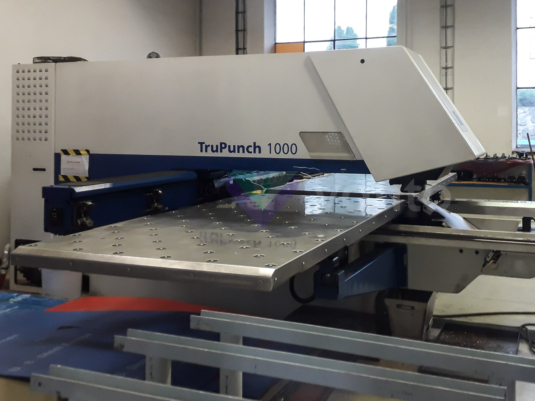

TURRET PUNCHING M/C (200 KN )
Bed Size:- 1.2 x 2.5 mtr.
Cutting Capacity : 0.8 MM TO 3MM Thickness
TURRET PUNCHING M/C (165 KN )
Bed Size:- 1.2 x 2.5 mtr.
Cutting Capacity : 0.8 MM TO 3MM Thickness
PRESS BRAKE

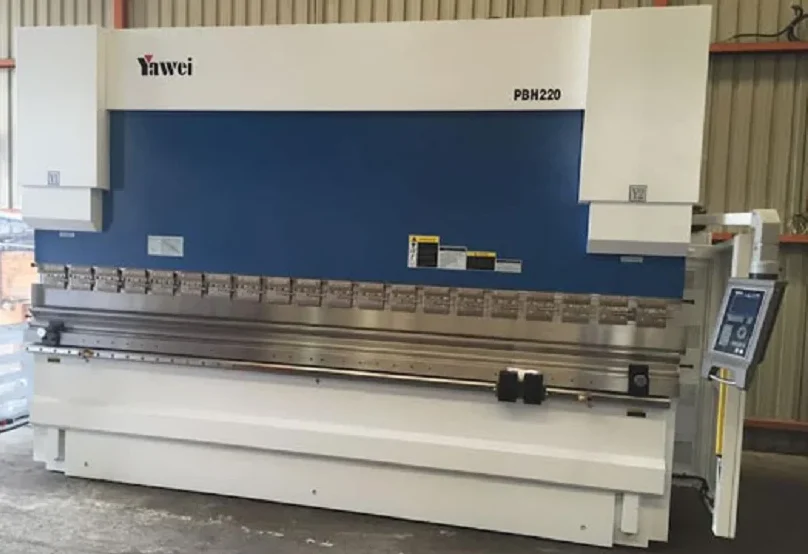

PRESS BRAKE M/C (220 TON)
Capacity-3 Mtr. Length With 8mm Thickness

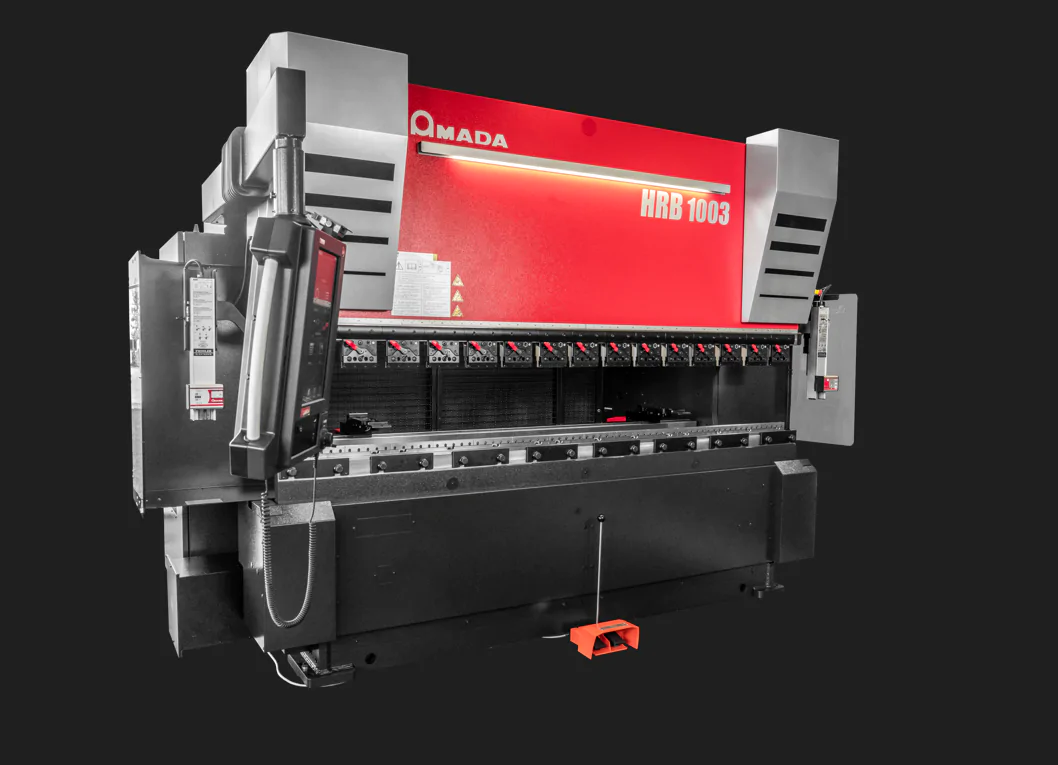

PRESS BRAKE M/C (100 TON)
Capacity-3 Mtr. Length With 3 mm Thickness

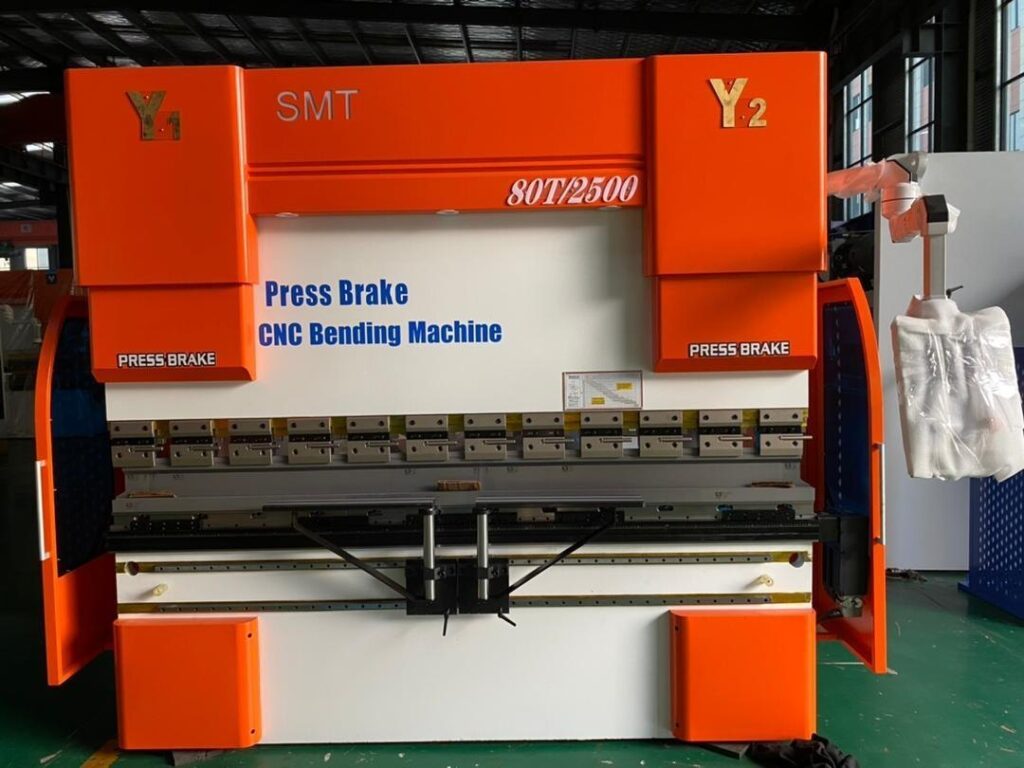

PRESS BRAKE M/C (80 TON)
Capacity-2.5 Mtr. Length With 4 mm Thickness
PRESS BRAKE M/C (63 TON)
Capacity-2.5 Mtr. Length With 4 mm Thickness
WELDING
WELDING Operation-SS & MS
ASME IX & ISO 9606 Welder Qualified
POWDER COATING

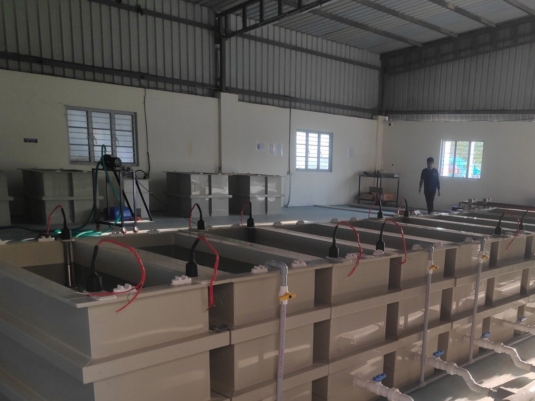

9 Tank Pre-treatment Zinc based Line
- Degreasing
- Water Rinse
- Derusting
- Water Rinse II
- Surface Activation
- Phosphating
- Water Rinse III
- Passivation Cum Water
- Drying

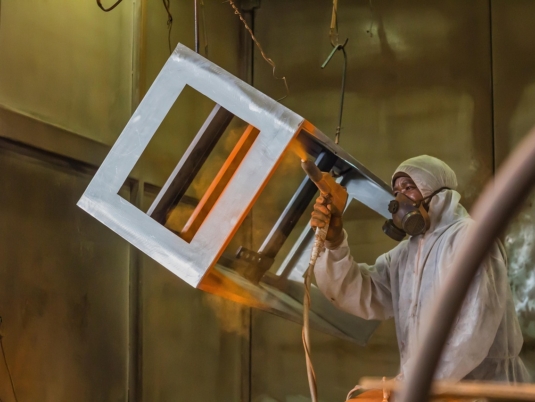

Powder Coating
Batch type Oven with Semi Automatic Conveyor System At Plant 1
Camel Back Oven With Automatic Conveyor system at plant 2
C1 to C5 Powder Coating Facility
SST 1000hrs+ Achieved
All Sheet metal jobs from press shops are cleaned for oil and rust completely and with help of pre-dip in Surface conditioning tank, very smooth and micro-crystalline coating of Nickel modified Zinc phosphate is produced in phosphating tank. The coating produces in this line is adaptive for next powder coating film and enhances the film properties of powder coating like adhesion, flexibility, gloss and corrosion(SST) resistance.
